Quick Details

  • Products Status: Stock
  • Application: Desktop
  • Rating Power: 150W - 250W
  • Interface Type: 24Pin
  • Brand Name: Realan
  • Model Number: LR1010-180W 19VDC
  • Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: paked in neutral box
Delivery Detail: with in 1 day after deposit

Specifications

mini itx power
1with good outside design
2Solid efficient power board

Realan Mini ITX Power LR1010-180W 19VDC





INPUT REQUIRED:

INPUT VOLTAGE RANGE:17VDC—24VDC

INCOMING CURRENT RANGE:12.0A Max @19VDC

INPUT SURGING CURRENT:12.0Vmax@19VDC

WORK EFFICIENCY:≥85%





OUTPUT REQUIRED:

FIVE GROUPS OF POWER OUTPUT(Vin=19VDC)



Item

Output voltage

Output current(A)

min(V)

avg(V)

max(V)

ripplewave(mV)

Sb current

avg

peak

+3.30V

+3.14

+3.30

+3.47

50

0

8.0

10.0

+5.00VSB

+4.75

+5.00

+5.25

50

0.1

1.6

2.0

+5.00V

+4.75

+5.00

+5.25

50

0

6.0

8.0

+12.00V

+11.20

12.00

+12.8

120

0

6.0

7.5

-12.00V

+10.80

-12.00

-13.20

120

0

0.1

0.15





Input/output interface:

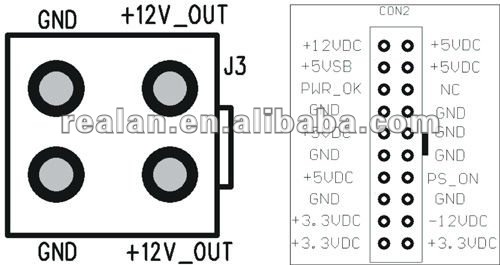

                          INPUT                                                                                  OUTPUT

Defencive fuction  (for+3.3V,+12V,+5.00V&+5.00VSB power output)


OCP: output shut down when output current reaches the peak point.



Short-circuit protection:output shut down when short-circuit.





PSU timing sequence:







Environment description:

Working temperature/humidity       15°C to 35°C / 45%-75%

Reposition temperature//humidity   -40°C to +70°C/ 10%-90%

Atmospheric pressure            86Kpa—106Kp





Other parameters:

Working frequency:Icbuilt-in oscillator(250-350)kHz@Vcc=12V





Feedback reference voltage:0.8V±2%@12VDC





Design drawing:

                                                                             TOP





                                                                         BOTTOM







                                                       PRODUCT OUTLINE DRAWING
